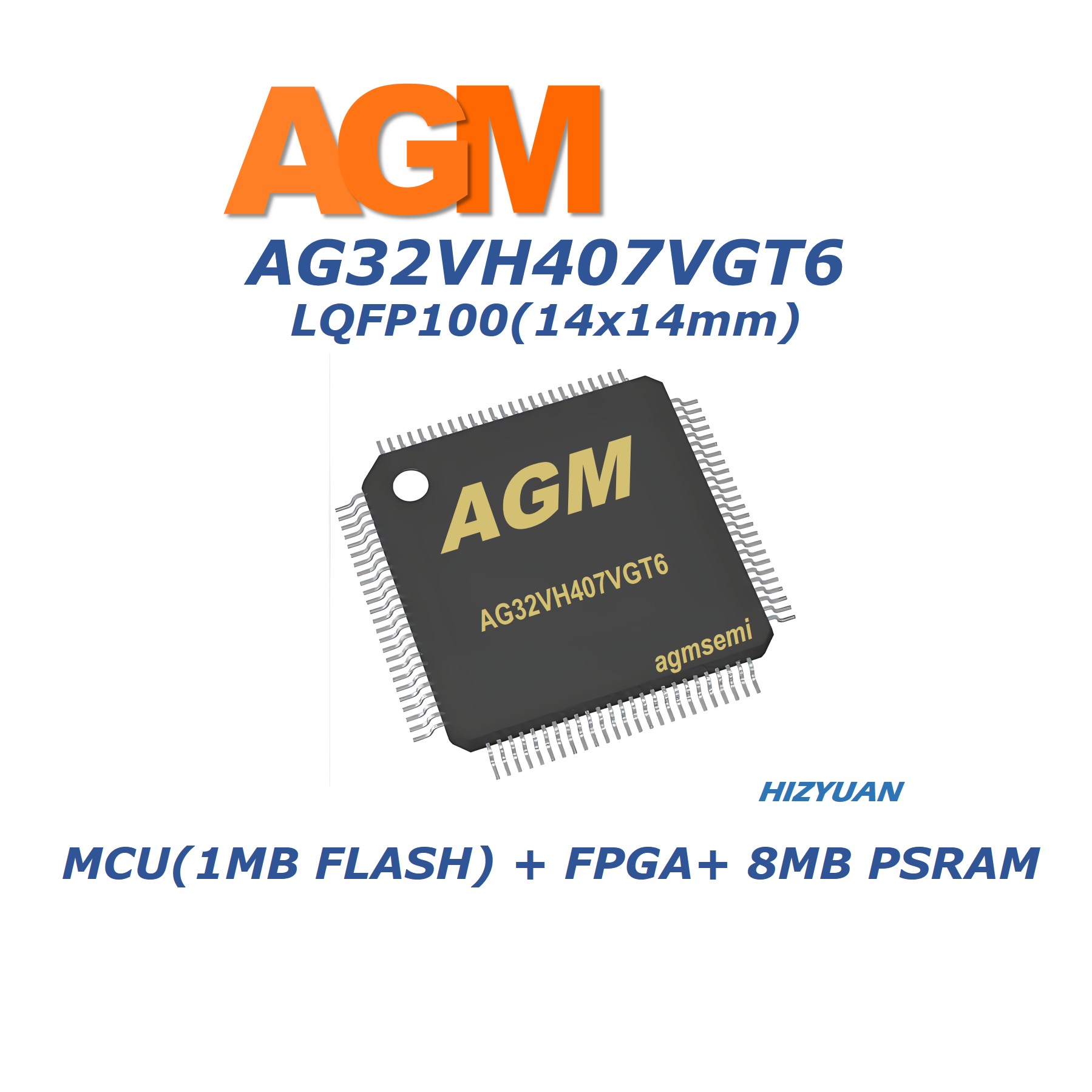

AG32 MCU series three-in-one chip, MCU + 2K cpld + 64Mbit PSRAM, one chip meets multiple needs at the same time.

The AGM32 family of 32-bit microcontrollers is designed to offer new degrees of freedom and rich compatible peripherals, and compatible pin and features to MCU users. AG32VH407 product series offers supreme quality, stability, and exceptional pricing value.

AG32 product lines support all its interface peripherals as closely as possible to mainstream compatibility.

Features

max CPU speed of 248 Mhz

Zero-wait state execution from Flash

SRAM 128KB

64Mbit PSRAM

Support floating point

Flash 256KB

1 x CAN2.0

5 x UART

2 x I2C

2 x Basic Timer

5 x Advanced Timer

Ethernet MAC

Support USB FS+OTG

Watchdog

3 x 12 bit, up to 3M SPS ADCs(17 channels), 2 x 10 bit DACs

1 dual channel 2 x Comparator

RTC

SPI

2K CPLD

AG32 MCU系列三合一芯片，MCU+ 2K cpld + 64Mbit PSRAM，一颗芯片同时满足多种需求。

AG32系列32位微控制器旨在为 MCU 用户提供新的自由度和丰富的兼容外设以及 兼容的引脚和 功能。AG32VH407 产品系列提供卓越的品质、稳定性和卓越的价格价值。

AG32 产品线支持 其所有接口外设，尽可能接近主流兼容性。

特征

• MCU 主频高达 248 MHz

• 从闪存零等待状态执行

• 静态内存 128KB

• 64Mbit PSRAM

• 支持浮点

• 闪存 256KB

• 1 个 CAN2.0

• 5 个 UART

• 2 个 I2C

• 2 个基本计时器

• 5 个高级计时器

• 以太网MAC

• 支持USB FS+OTG

• 看门狗

• 3 x 12 位，高达 3M SPS ADC（17 个通道），1 x 10 位 DAC

• 1 双通道 2 x 比较器

• 实时时钟

• 串行外设接口

• 2KLE CPLD
