AG576包含2个型号，如下：

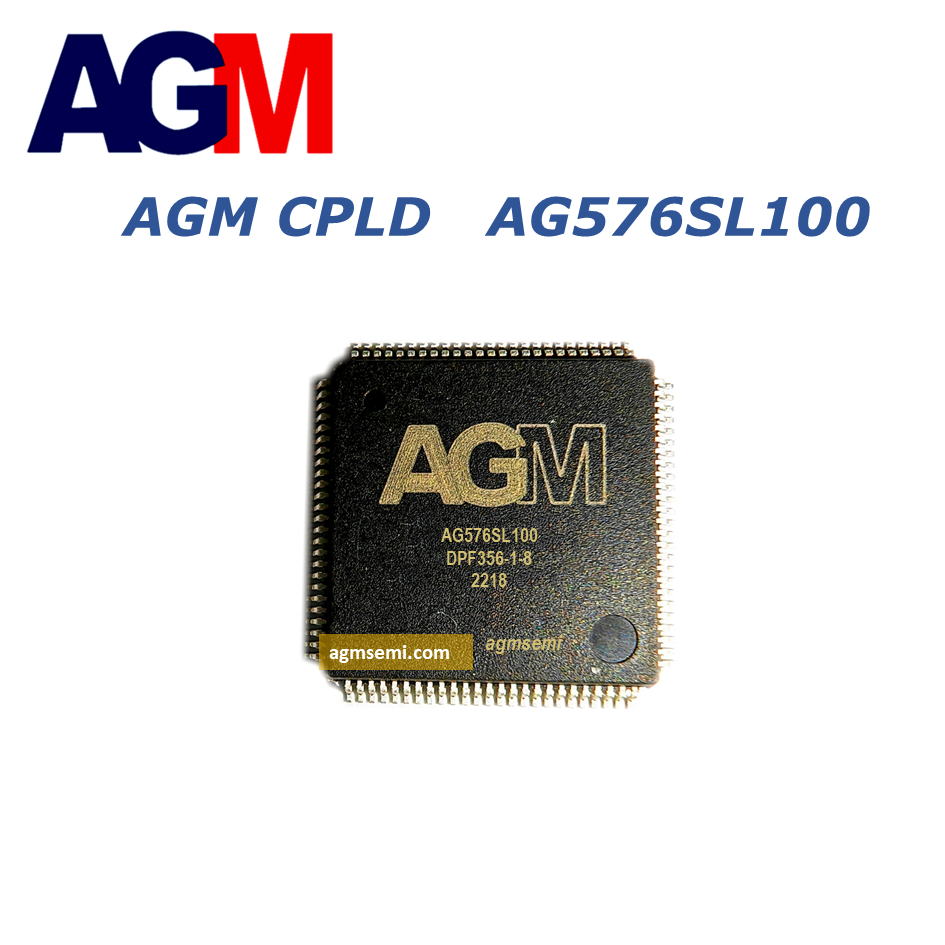

AG576SL100，TQFP100

AG576SL144,  TQFP144

AG576 CPLDs is the low cost CPLDs. This instant-on, non-volatile CPLD family targets general-purpose and low-density logic. The logic density is 576 Logic Elements with LQFP-100 and 144 package.

•  Low-Cost and low-power CPLD

•  Instant-on, non-volatile standard compatible architecture.

•  Up to 4 global clock lines in the global clock network that drive throughout the entire device.

•  Provides programmable fast propagation delay and clock-to-output times.

•  Provides PLL per device, clock multiplication, and phase shifting.

•  UFM supports non-volatile storage up to 256 Kbits.

•  Supports 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic level

•  Programmable slew rate, drive strength, bus-hold, programmable pull-up resistors, open-drain output, Schmitt triggers and programmable input delay.

•  Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry complaint with IEEE Std. 1149.1-1990

•  ISP circuitry compliant with IEEE Std. 1532

•  3.3-V, 2.5-V, 1.8-V, 1.5-V LVCMOS and LVTTL standards

•  Emulated LVDS output (LVDS_E_3R)

•  Emulated RSDS output (RSDS_E_3R)


Download datasheet

EVB schematics
