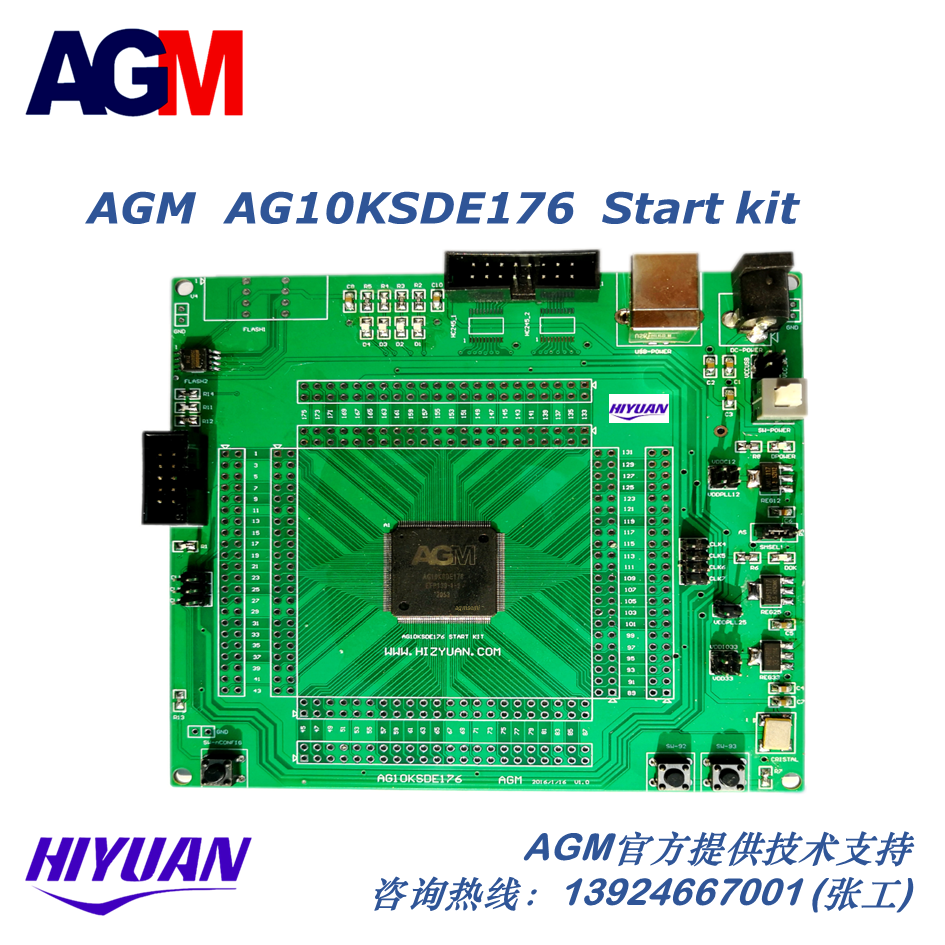

产品型号：AGM SOC AG10KSDE176 Startkit 开发板
产品品牌：AGM - HIYUAN
产品单价：网上的为参考单价，批量单价请另外具体咨询，我们可以提供项目价格支持。
原厂支持：
购买AGM 产品可获得原厂技术支持，有原厂资深技术工程师提供的指导服务。
我们有专业的FAE团队，可为用户提供本地化的快速技术支持服务，如指导设计选型、程序移植、软件开发等，并为用户提供稳定可靠的供货保障。
AG10KSDE176介绍：
AG10KSDE176(+MCU)+SDRAM device is AG10KSDE176(+MCU) SoC bonded with 64MBit 32-bit 166MHz SDRAM die. EQFP-176 package is provided as industrial grade, is pin-to-pin compatible with AG16KSDE176(+MCU)+SDRAM.
MCU hard-IP is embedded within FPGA logic fabric, and all mcu internal IOs are connectable to device's IO pad, and/or internal FPGA's logic as user demands. MCU core, with usable code space up to 64 KByte RAM, is programmable through spiflash, and JTAG for testing purposes.
AG1280 is ultra-low cost and power in QFN-48 6x6 and QFN-32 4x4 0.8mm (actual 0.77mm) thinkness packaging. The device has 1280 LUTs and maximum 40 user IOs, provides 68Kbits embedded block RAM and 10Kbits distributed RAM, one PLL per device provide clock multiplication and phase shifting, and embedded FLASH configuration through JTAG interface, on-chip clock generator with wide output frequence range.
The device is Instant-on, non-volatile, multiply programmable architecture. The device provides Emulated LVDS output (LVDS_E_3R).
AG1280 selling price is highly competitive.
